Fay's Weldpur Custom Installations

Weldpur

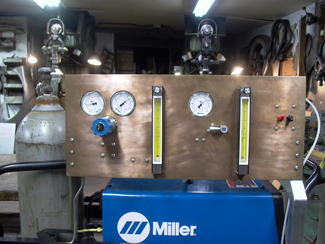

This Dynasty 350 TIGRunner is one of the 15 prototype machines Miller used to develop the production model. To gain the added advantage of purified argon gas, we have built a delivery system for this portable unit.
NOTE:
Hardware necessary for installation is now available for sale. Call Fay for information.

KEY PARTS
Weld Assure Purifier: A getter chemical purifier, the heart of Sthe inert gas delivery system.

Regulator:  stainless steel diaphragm and body, reduced air space, 2 stage, remote mounted form tank with a check valve CGA fitting.

Flow Meters:  Teflon seats, stainless steel wetted parts, needle adjustment on outboard side.  One for main flow and one for back purging.

Solenoids:  KIP 24v normally closed, cleaned for oxygen service. One for flow and one for back purging.

Tubing: All hard lines are seamless stainless steel tubing throughout attached with stainless Swagelok fittings. Flexible lines from the solenoid to the torch are high-density polyethylene (HDPE) attached with Swagelok stainless steel fittings. Close to the TIG torch is placed a one way Swagelok check valve.
Contact Fay for more information and to arrange for purchase.
